AC-14 ANCHOR - www.oceanforce.com.au

The AC-14 Anchor is a proven high holding power (HHP) drag embedment anchor, widely used for commercial marine, port and offshore mooring applications. Its geometry provides reliable penetration and stable holding performance across a range of seabed conditions.

Manufactured from high-tensile steel and certified by Lloyd’s Register (LR), the AC-14 anchor offers consistent holding efficiency with a favourable weight-to-performance ratio. The design allows for rapid embedment and steady load resistance under changing environmental forces, including wind, tide and current. AC-14 anchors are supplied as a welded, one-piece construction, making them robust, simple to deploy and well suited to both temporary and permanent mooring systems. Ocean Force supplies AC-14 anchors with full traceability and certification, with common sizes held in stock for fast turnaround.

SPECIFICATIONS

Anchor Type: AC-14 High Holding Power Anchor
Certification: Lloyd’s Register (LR)
Construction: Welded high-tensile steel
Finishing: Black painted
Nominal Weight: 90–675 kg in stock

Applications

Commercial Vessel Moorings: Reliable anchoring for workboats, barges, and service vessels
Ports & Harbours: Temporary and semi-permanent moorings for operational assets
Aquaculture: Mooring of pens, cages, and associated infrastructure
Offshore & Coastal Infrastructure: Buoys, floating structures, and marine equipment
Construction & Dredging: Short-term anchoring for marine construction activities

Larger sizes, alternative finishes, and certification options are available on request.

Specifications
Ask A Question

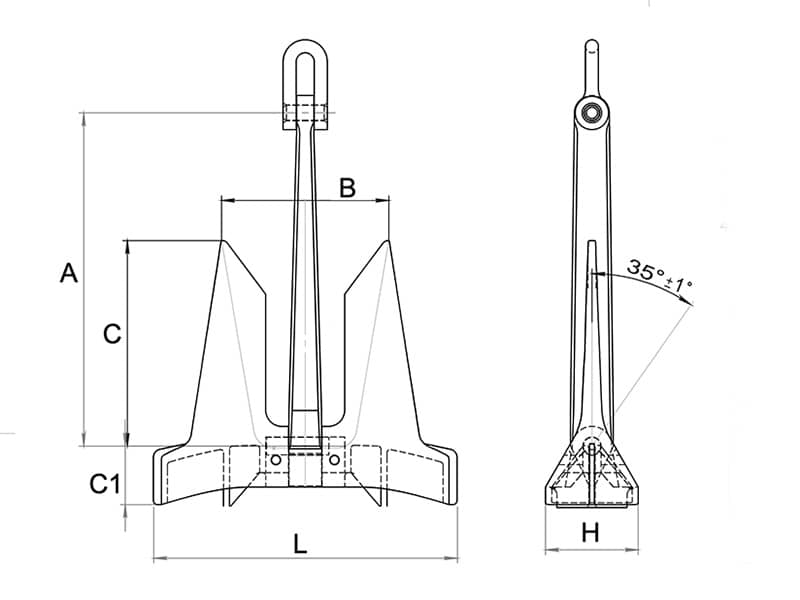

Weight (kg)	Size (mm)
Weight (kg)	A	B	C	C1	L	H
180	904	434	550	157	811	251
225	974	468	593	169	874	270
270	1035	497	630	180	929	287
315	1090	524	663	189	978	302
360	1139	547	694	198	1022	316
430	1194	574	727	206	1071	331
495	1251	602	762	216	1122	347
585	1360	654	828	236	1221	378
675	1398	672	851	242	1254	387

Measurements in tables may vary between different models. Ocean Force strives to ensure accuracy but encourages customers to contact us with any questions.
